Newsletter 148 Spring 2025      © Hampshire Mills Group



Sugar Cane Mills in Madeira





Ruth and Keith Andrews





Sugar cane was introduced to Madeira around 1425, shortly after the island was discovered, and was brought from Sicily.  The cultivation of sugar cane was a huge success, and within 30 years Madeira had become Europe's largest producer of sugar.  The island has good conditions for the production of cane and its product, sugar:  it has abundant water and wood that can easily feed the mills – although irrigation channels (the famous levadas) were needed to get the water to where it was needed.

The first thing the settlers did was to clear and burn the forests to create fields for agriculture:  wheat and sugar cane did well in the volcanic ground.  Sugar cane was the cash crop of Madeira called ‘white gold’ and brough great economic prosperity.  A large number of slaves from the Canaries and Africa were shipped to Madeira to work in the industry, and construct fields and levadas.

The construction of the first mills saw sugar production explode.  In 1500 Madeira was the largest sugar exporter in the world.  Its sugar was considered to be of superior quality and much appreciated in the Portuguese Court, England and Flanders.  Madeiran production was in strong competition with sugar from the Mediterranean.  The island saw an influx of traders from all over the known world.

After this first boom that was experienced in the 15th and early 16th centuries, Madeira later had a hard time competing with sugar cane from Bazil, and all its accessible wood had been burned to refine the sugar.  Sugar cane plantations were converted into vineyards, and the Madeira’s most important export became its famous Madeira wine.

With the advent of the 19th century sugar cane made a comeback, particularly producing cane rum, the most important element of poncha (honey, lemon, and rum), and sugar cane honey.

The sugar production techniques used in Madeira used animal power (oxen).  Later, one of the island's assets, water, was used.  The water mill and the trapiche are then used:  usually a mill of cylinders used to grind cane, with horizontal or vertical axes, moved by animals or even by men.  Latterly steam was used.

The sugar production process, in a very basic way, is as follows.  The cane is harvested and ground within the first 48 hours, to retain as much sucrose as possible.  In the mill, after juice and bagasse are extracted, the juice is cooked in boilers, filtered for impurities, and concentrated in pans until it reaches the consistency of honey.  The honey is beaten to the point of crystallization of the sugar.  The sugar is then broken and cooked again for the purpose of refining, being placed in conical shapes known as pão de açúcar.  Finally, through washing, the sugar is purged of the honey that could remain.





There are now just three sugar cane mills left on Madeira.  One in Calheta, on a steep hillside, is almost a museum, although it produces poncha and rum and honey for sale rather than sugar, while the one in Porta da Cruz is a full-scale factory, producing rum.  There is a third one in Funchal which we did not visit.

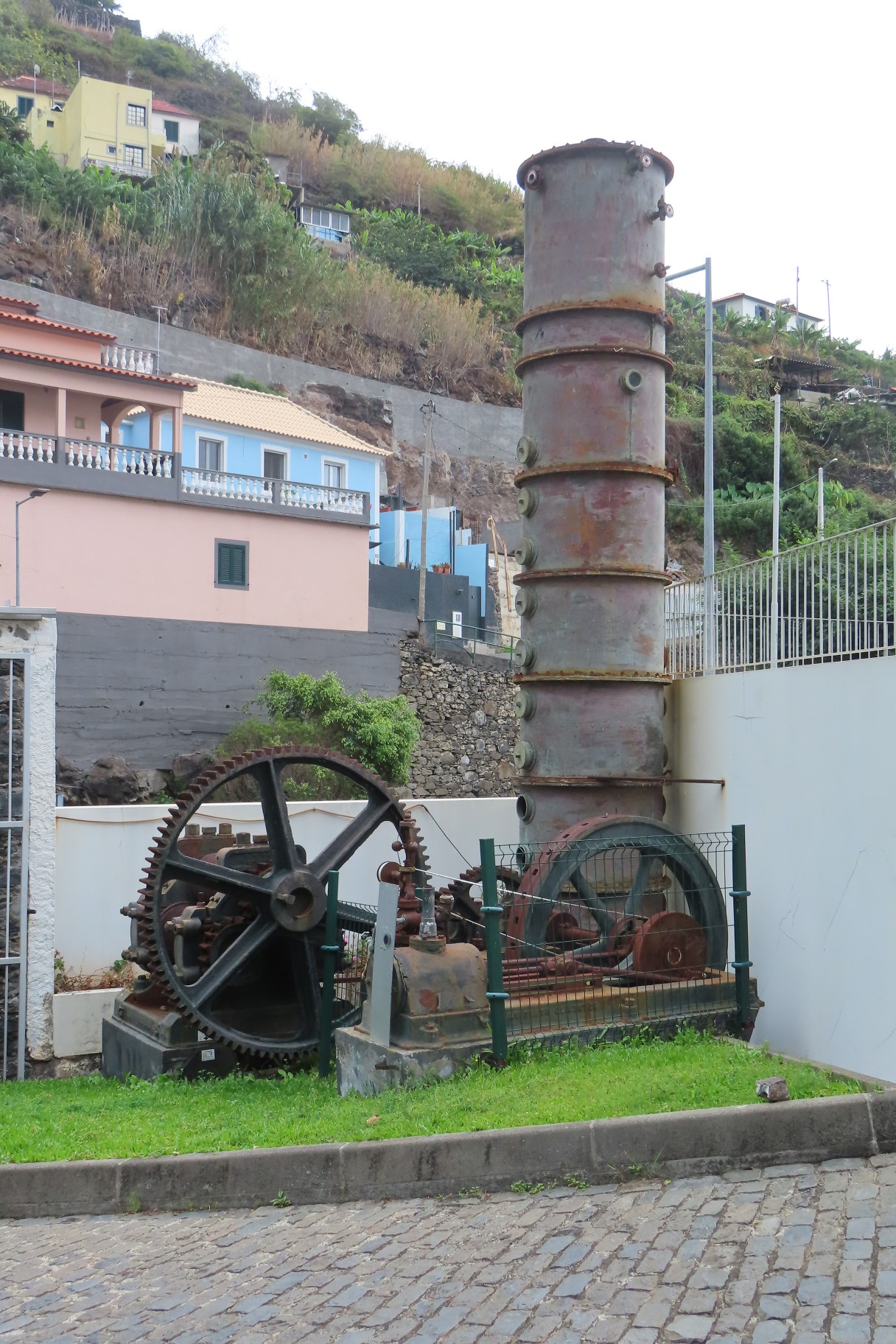

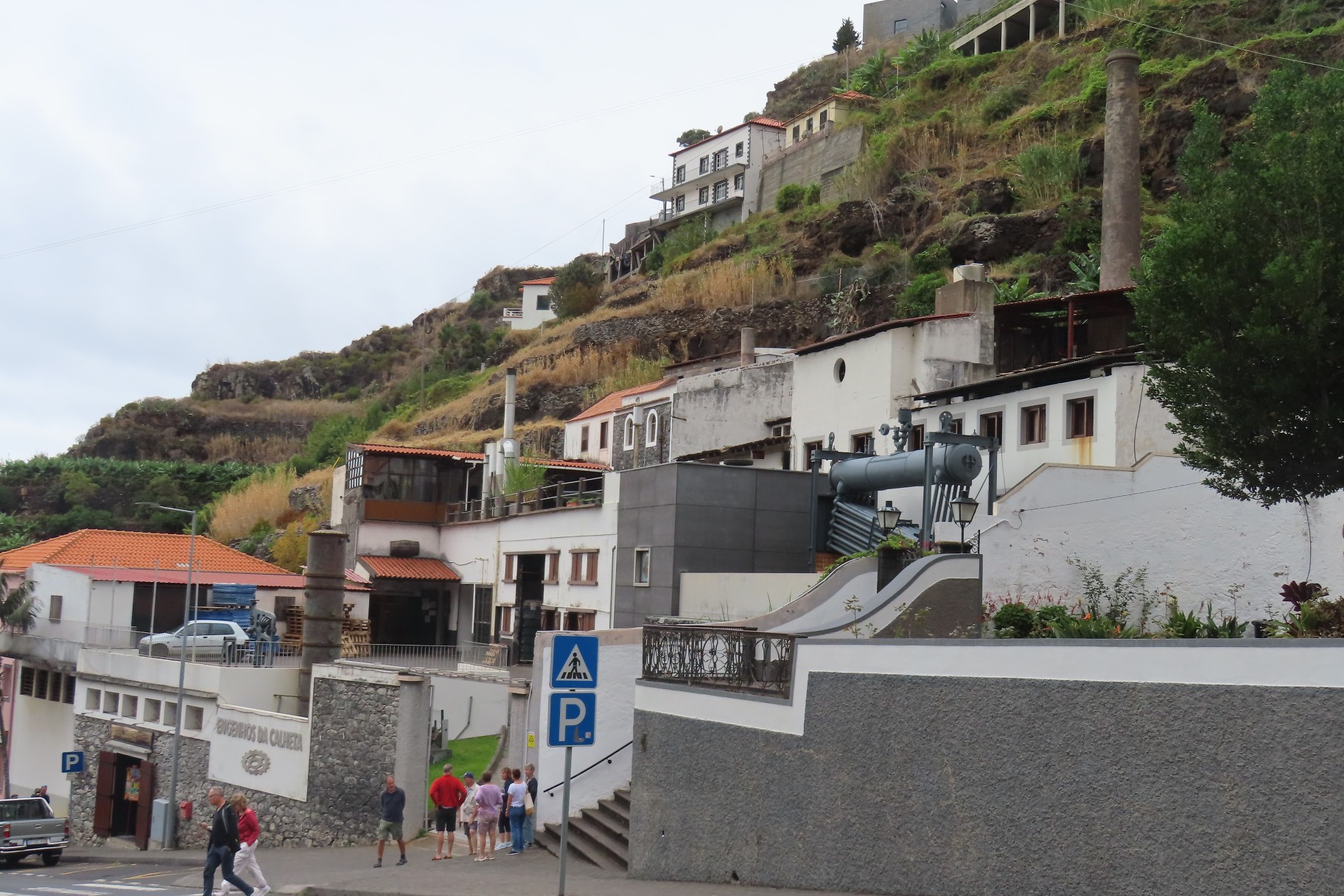

Calheta’s historic sugar mill, Engeno da Calheta

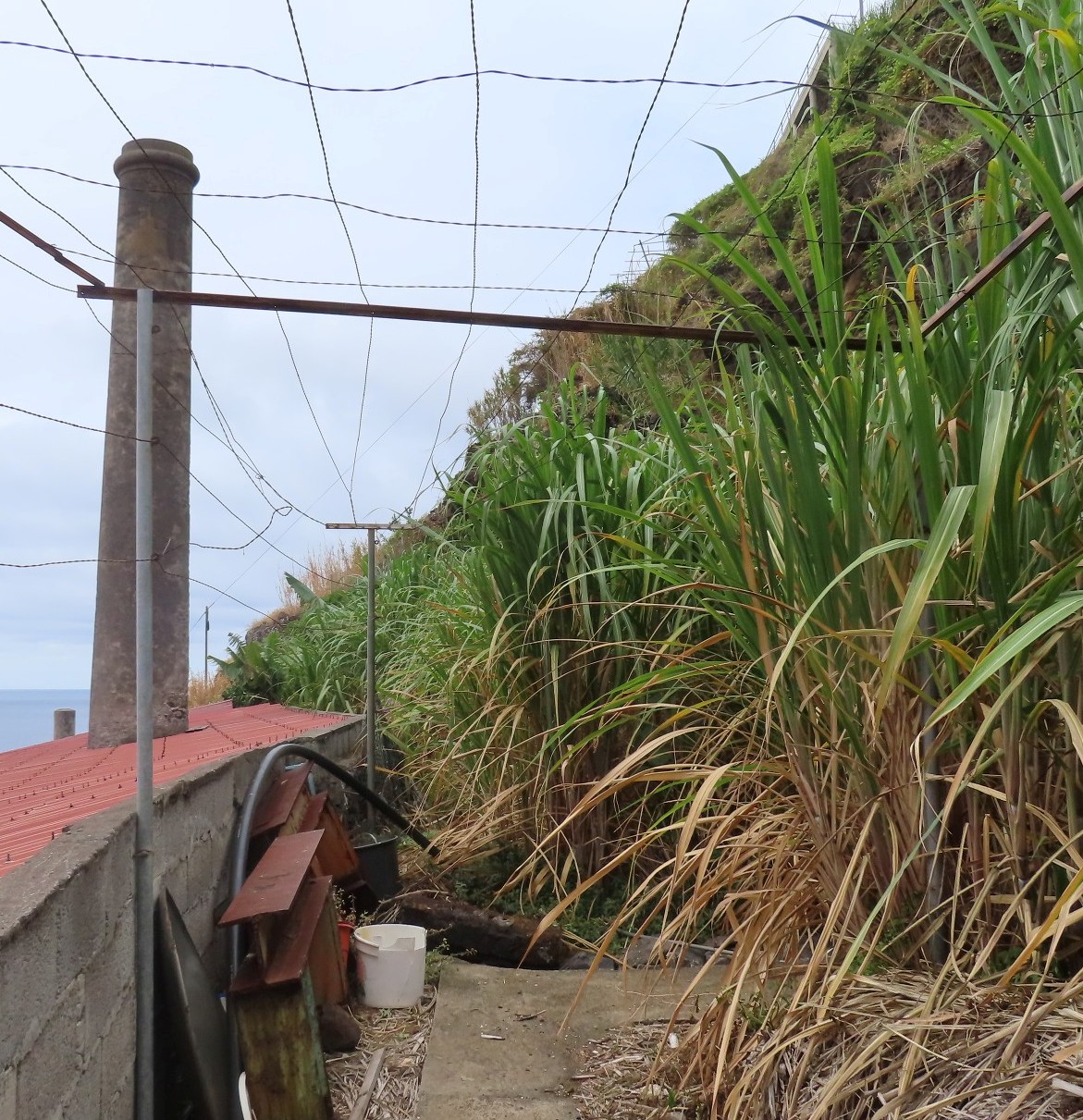

Sugar cane growing on the hillside above the mill

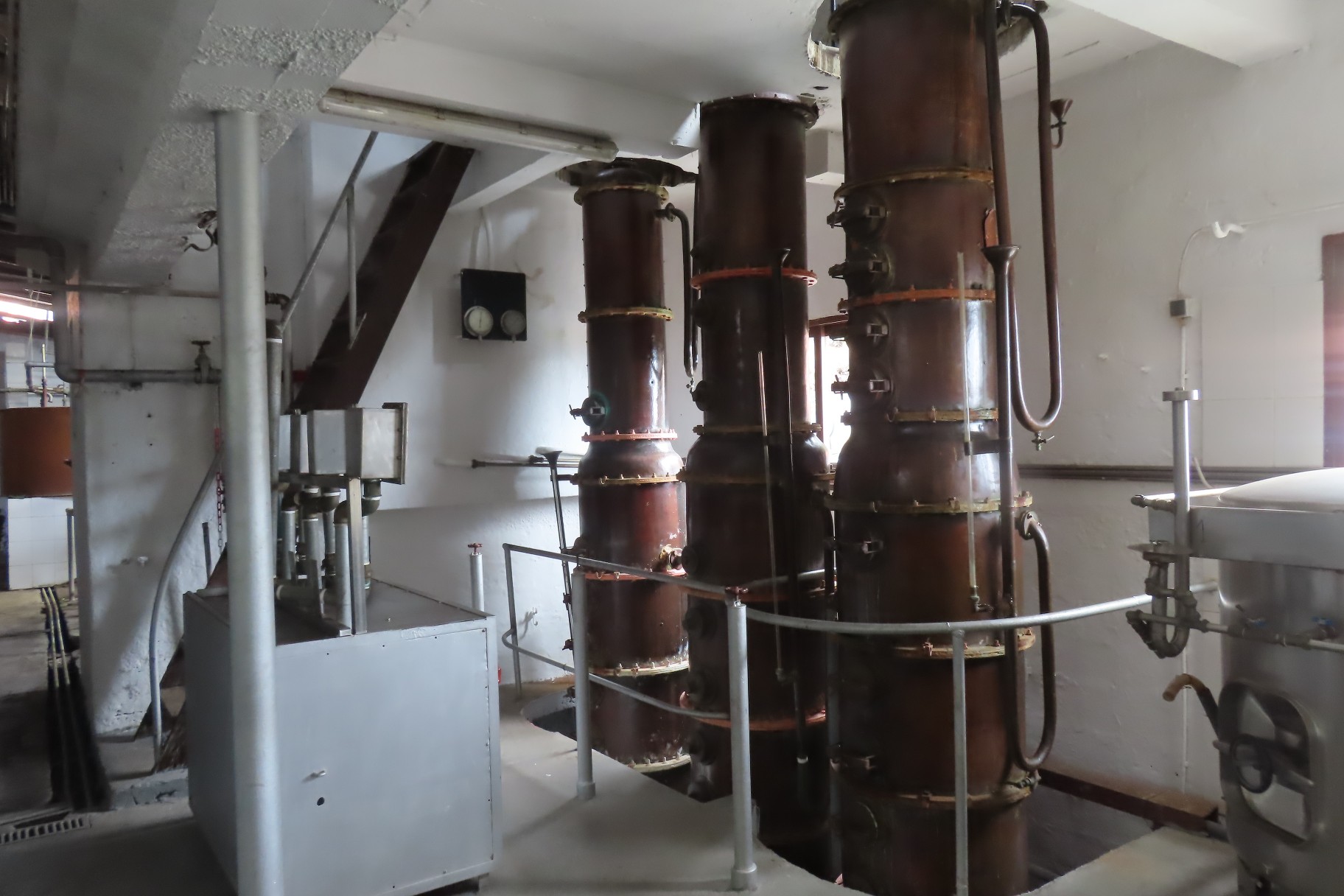

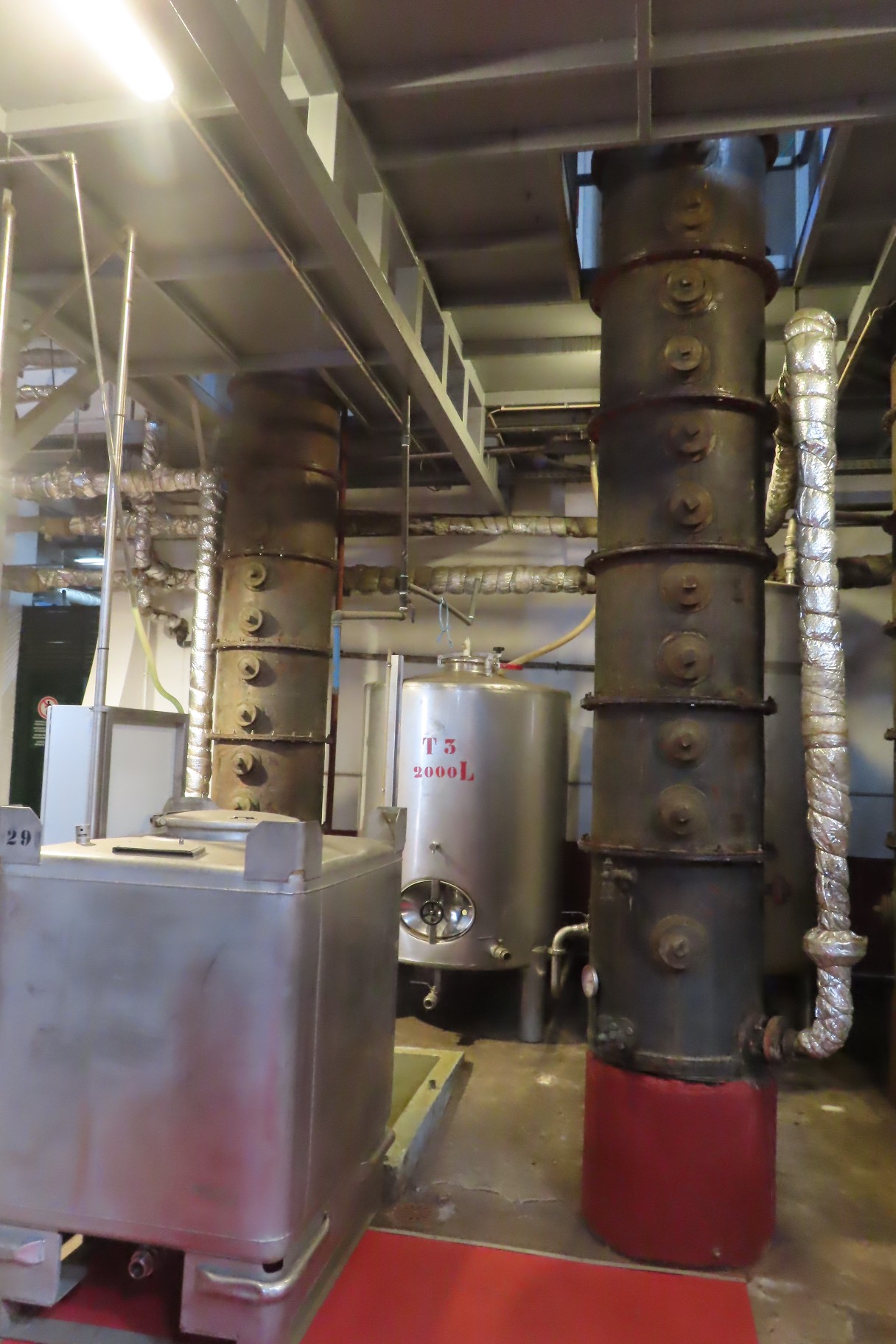

Fractionating columns for distilling

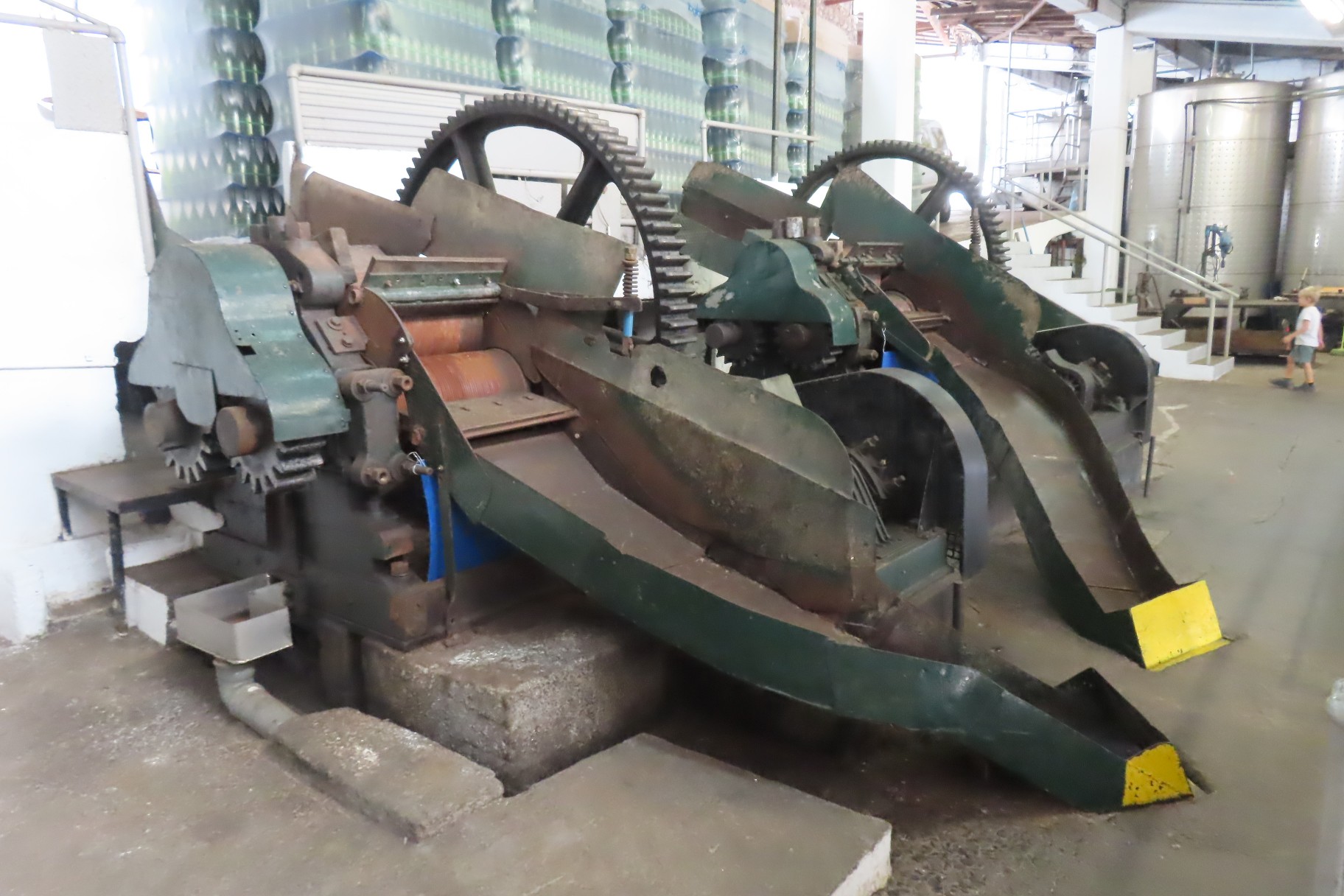

Cane crushers

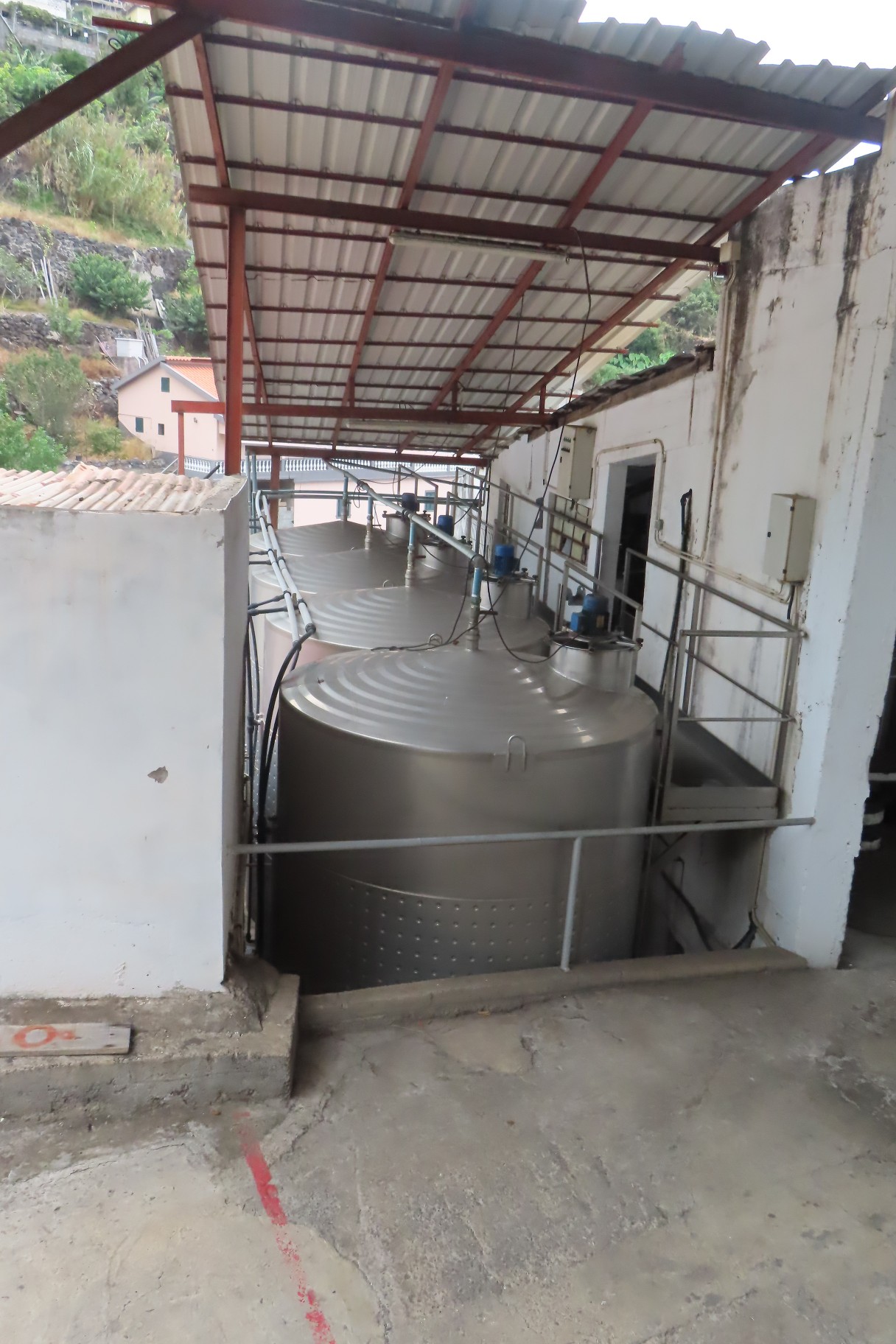

Pressure boiling vessels

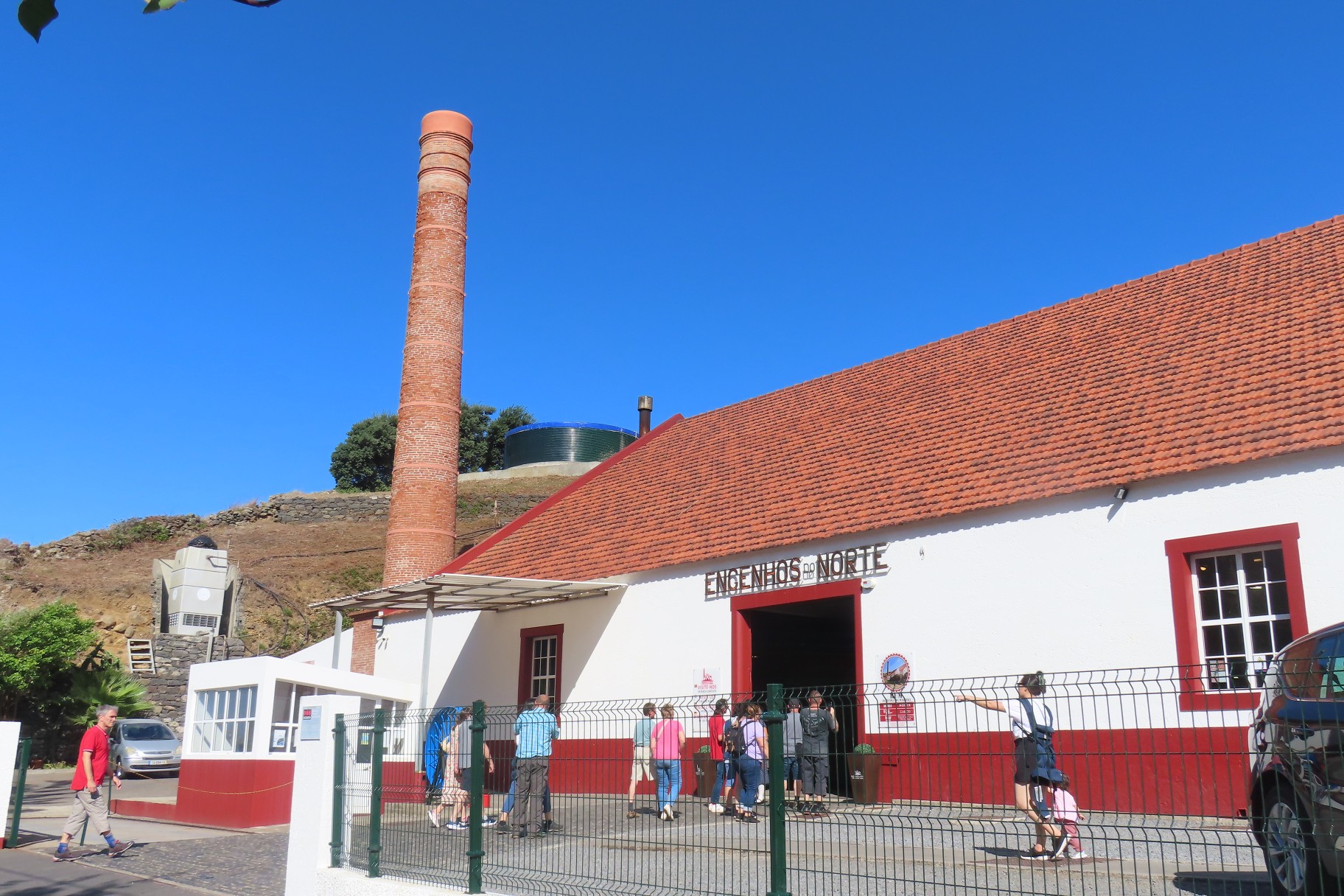

Porto da Cruz sugar mill, Engenhos do Norte

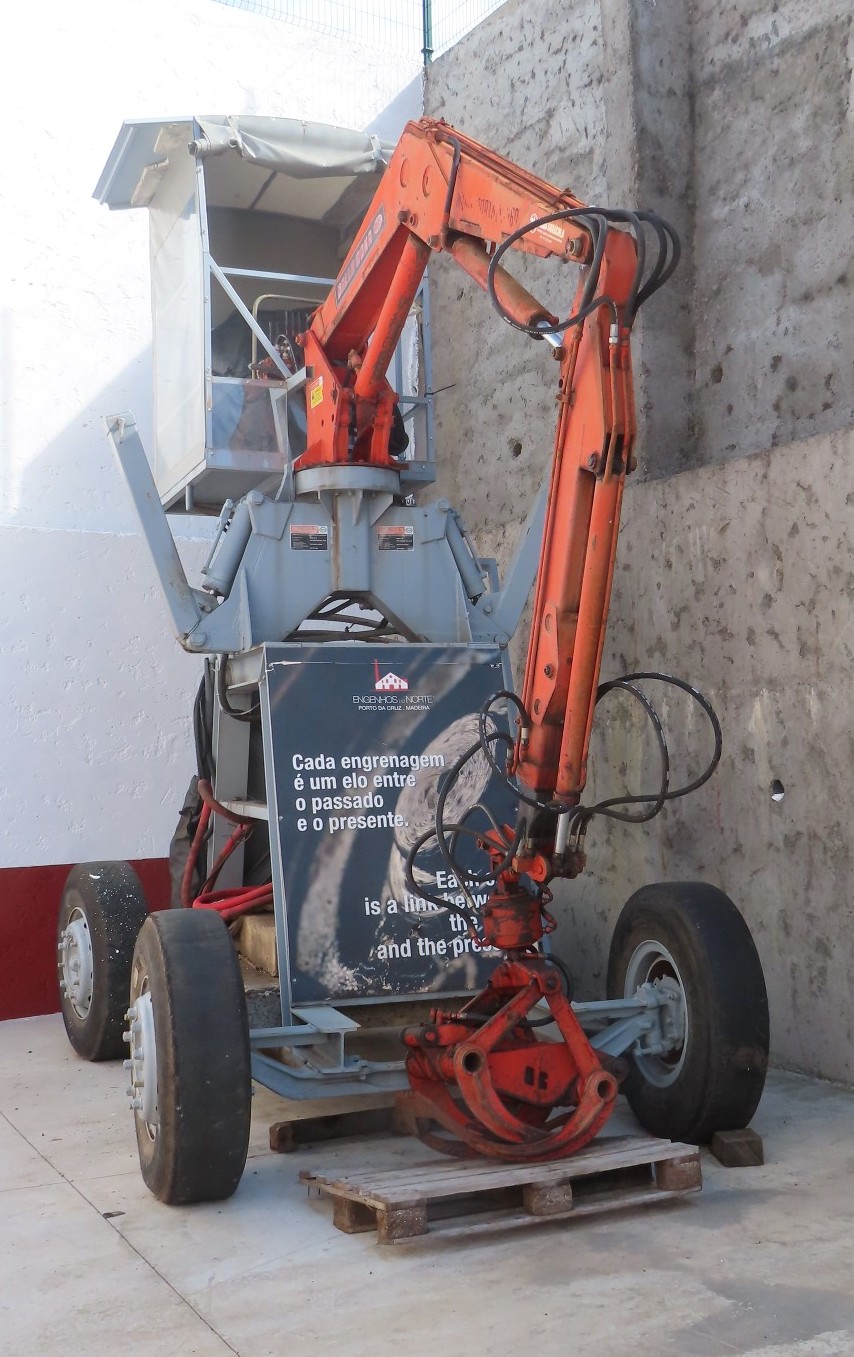

Grab for handling sugar cane

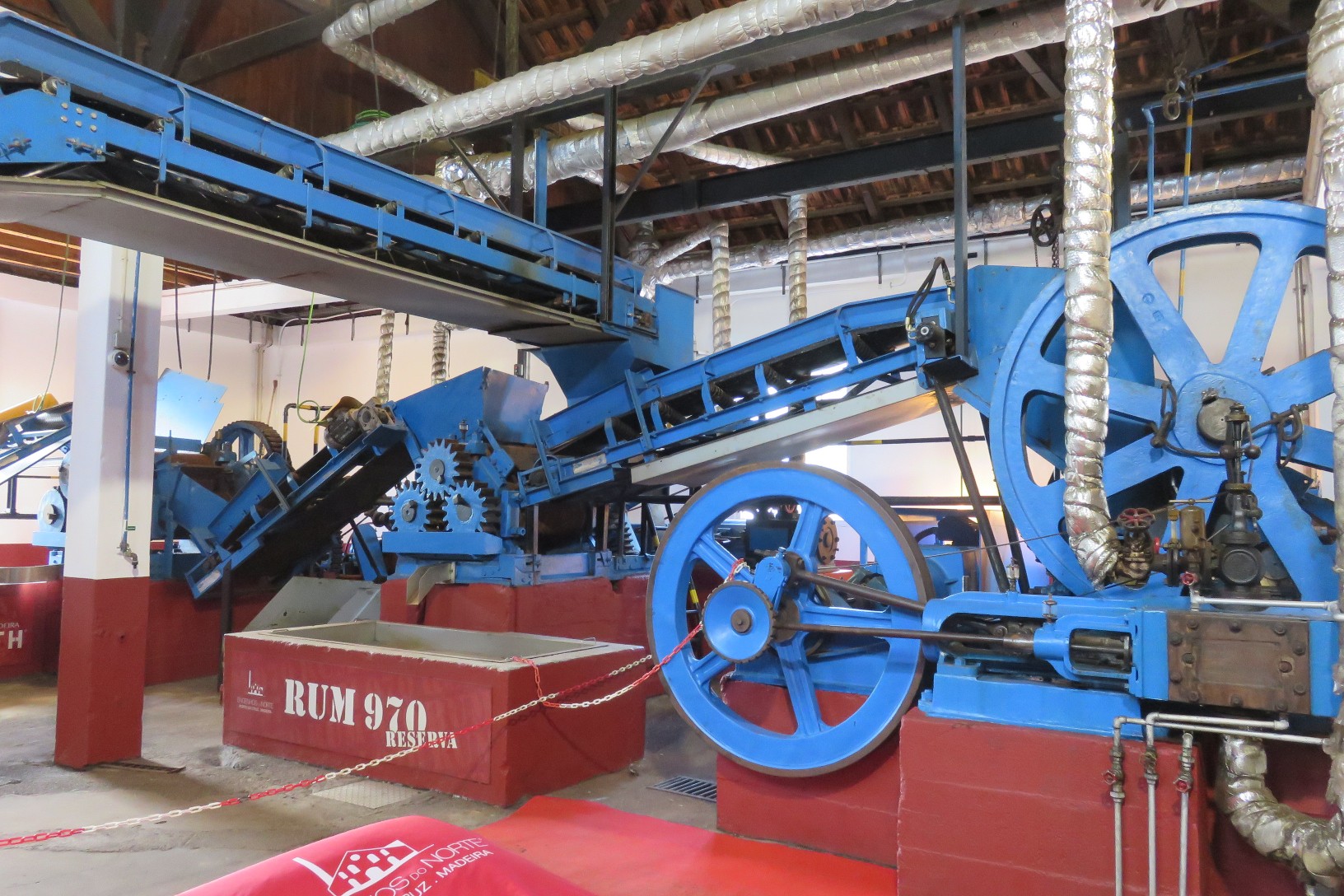

Conveyors with steam engine in foreground

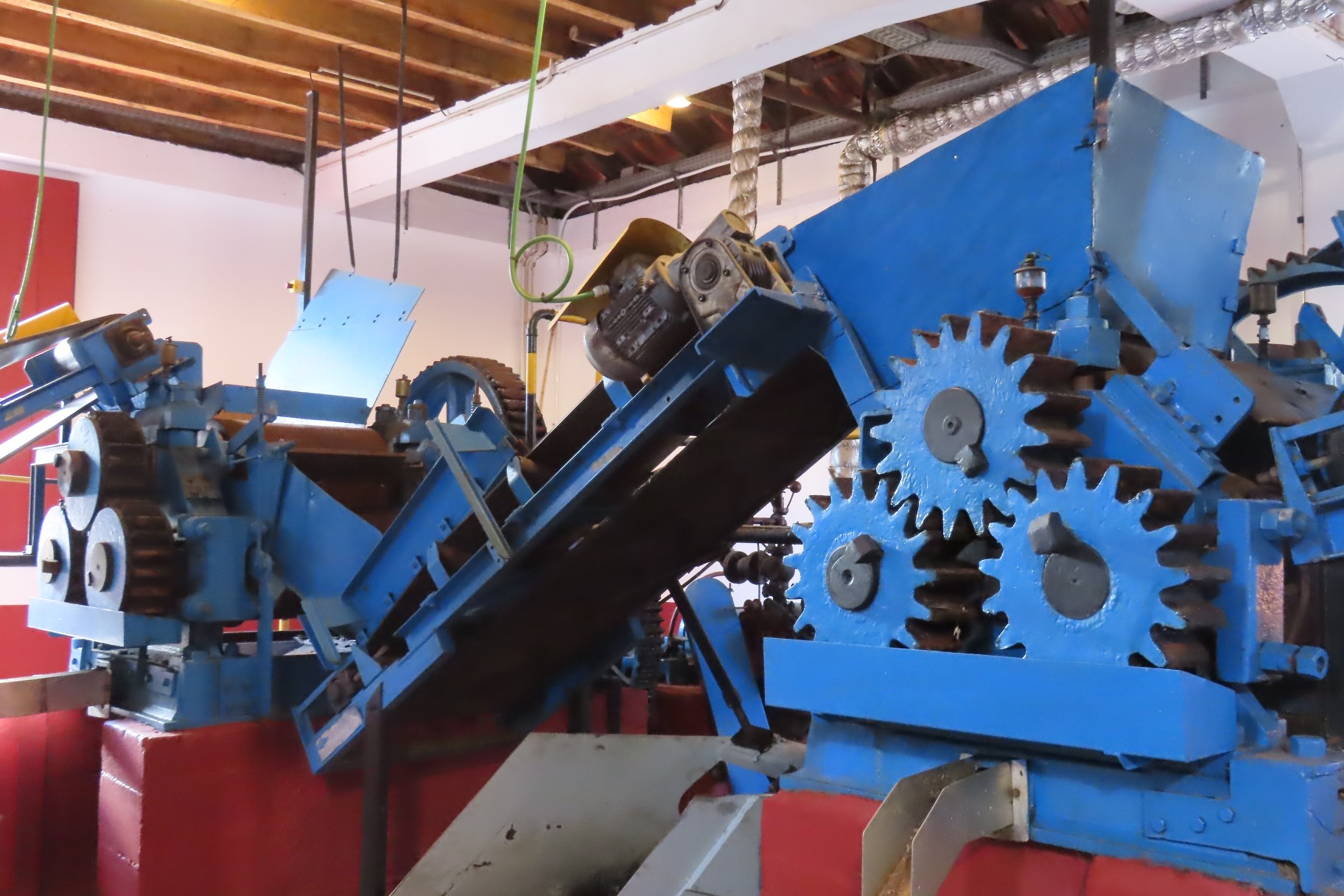

Trapiches, the 3-roller crushing mills

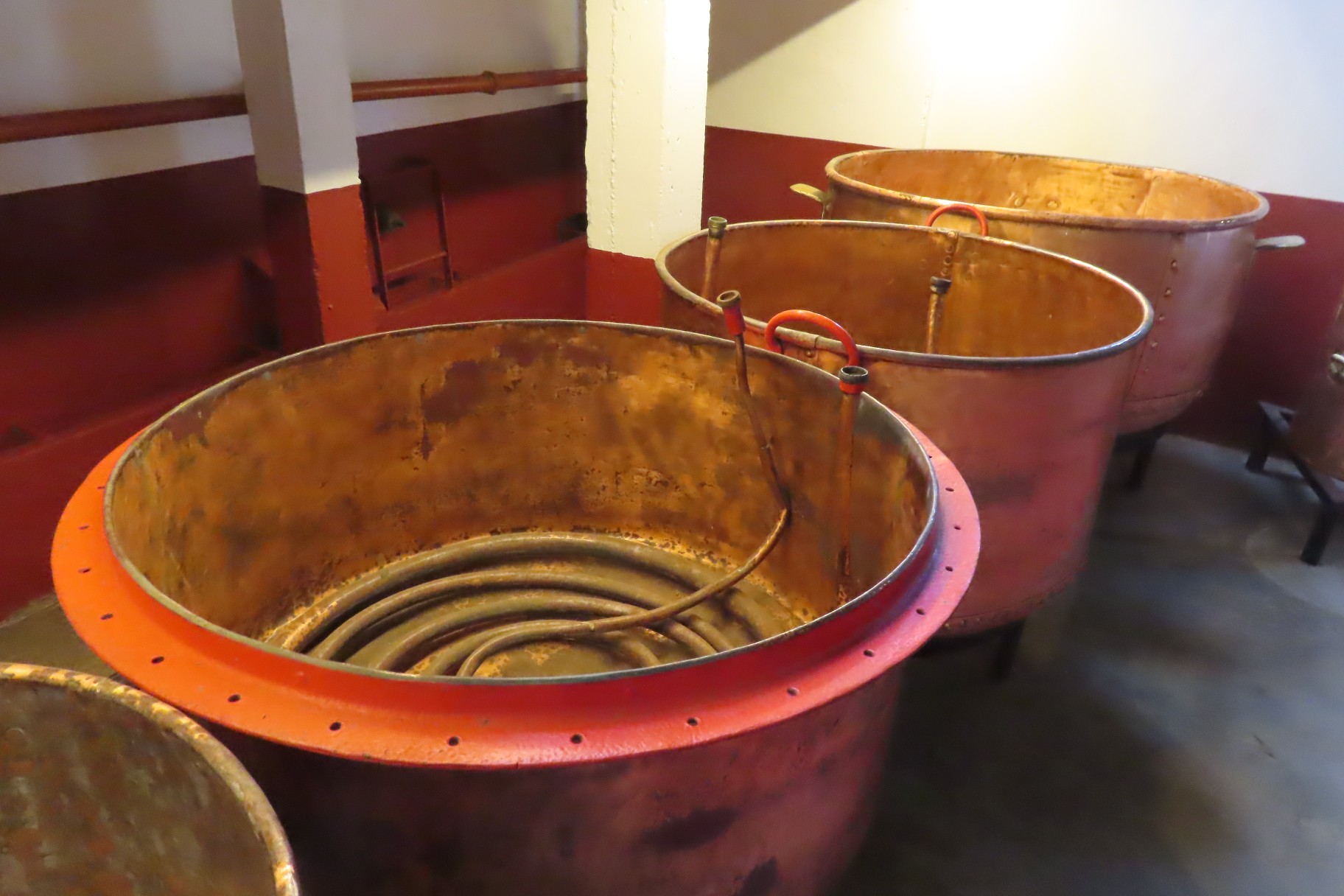

Fermentation Vat with cooling coils















Fractionating columns for distilling and pressure boiling vessels
